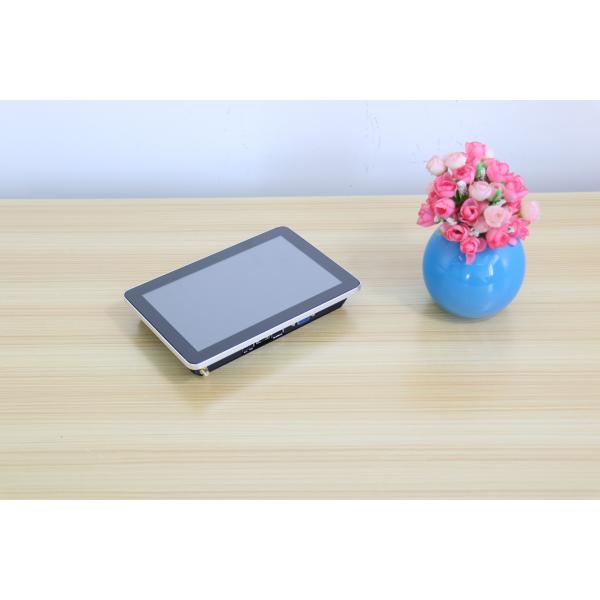

Industrial Touchscreen Android Tablet 8 Inch PoE Panel PC For Automation

Name: Industrial Touchscreen Android Tablet 8 Inch PoE Panel PC For Automation
Brand: ITD/OEM
Price: 1 USD

Quality Industrial Touchscreen Android Tablet 8 Inch PoE Panel PC For Automation for sale

Brand Name : ITD/OEM

Model Number : ITD08PPCT5KE1

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Native resolution/Brightness : 1024 x 768, 1280x 800 OPTIONAL 350cd/㎡

Applications : Automation, Food&beveragy industry, smart city, EV Chargers

I/O : HDMI input, USB ports, TF Card slot, RJ45,COM optional

touch panel : projected capacitive touch screen 10 points

Mounting method : VESA, 75x75, desktop stand

IP Level : IP65 Front

Operating Temperature : -10~60℃

OS : Android, Linux

Configurations : RK3288, Quad Core, 2G RAM, 16G ROM

Warranty : 2 years

MTBF : 50000hours

PoE : PoE included

Product Name : industrial panel mount pc 21 inch 1000cd/㎡ ARM based linux touch computer

Contact Now

industrial touchscreen android tablet 8 inch PoE panel PC for automation

FEATURES of touchscreen android tablet

• Easy-to-clean, true flat front surface without bezel

• Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

• ARM based RK3288, Android, Linux OS Supported

• Eliminates dust and debris build-up at the edge and corners of the display

• Provides improved power efficiency and reduced consumption

• Responds to a light touch to activate response

• Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

• PoE included to simpify external cables

• CE, FCC, RoHS Compliance

OPTIONALS of touchscreen android tablet

• DC 24V, DC9-36V, AC100-240V	• Optical bonding
• Resistive touch screen, tempered glass	• WIFI, 3G, 4G
• Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, GPS etc.

SPECIFICATON of touchscreen android tablet

Panel	Cell Type/Glass Surface	TFT
	Size/ Aspect Ratio	8”/4:3
	Active Area/ Pixel Pitch	163(W) x 122.5(H)mm/0.15825 × 0.15825mm
	Native Resolution/ Colors	1024 x 768 or 1280 x 800/16.7M
	Brightness/ Contrast	300cd/㎡/800:1
	Response Time	25ms
	Viewing Angle(Typical)	85/85/85/85
	Light Source	LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System	CPU: ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz GPU: Mali-T764 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G Optional OS: Android 7.1/8 newer version; Linux Bluetooth: optional WIFI: included 802.11a/b/g/n Video Decoder: 4K VP8 and 4K 10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output	1 × HDMI; 2 × USB Max. 6× USB 1 × TF Card Support 8~128GB; 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); 1 × DC 12V 2.0 PoE Com Port optional
Operating Temperature	-10~60℃
Storage Temperature	-20~70℃
Relative Humidity	10%~90%
Order Information	8”Zero-Bezel Android Panel PC with Tempered Glass/ITD08PPCG1KE1

Industrial Touchscreen Android Tablet 8 Inch PoE Panel PC For Automation

Product Tags:

Industrial Touchscreen Android Tablet

8 Inch PoE Panel PC

Automation PoE Panel PC

Industrial Touchscreen Android Tablet 8 Inch PoE Panel PC For Automation Images
