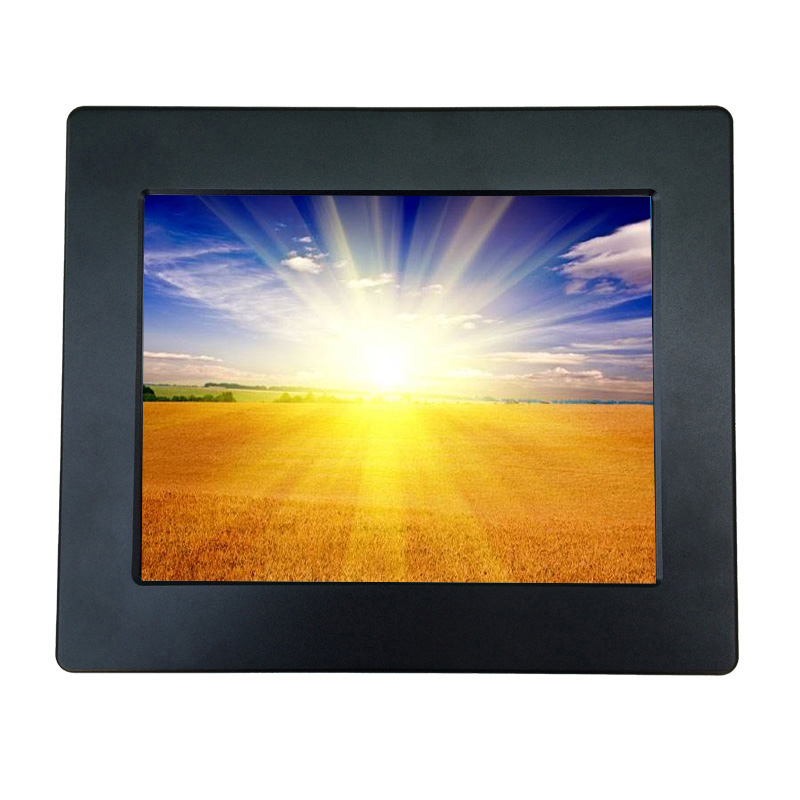

| High Brightness Panel Mount Panel PC |
| Model Name | ITD10PPCG1HB** |
| IP Rating | IP65 Front Panel |
| PC Systems Options |
| ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 |
| Chipset: N/A | Chipset: Intel® HD Graphics, Support 1080p | Chipset: Intel® HD Graphics, Support 1080p |
| Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) |
| HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G |
| 1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI |
| 1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 |
| 1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) |
| 1×LAN | 1×LAN | 1×LAN |
| 1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In |
| Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe |
| LCD Panel |
| Screen Diagonal (Inch/cm) | 10.4” |
| Display Active Screen Size (mm) | 211.2(H)X158.4(V) |
| Aspect Ratio | 4:3 |
| Physical Resolution | 800×600(1024×768 optional) |
| Maximum Resolution Supported | 1920X1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 1000(1500 Optional) |
| Contrast Ratio | 500:1 |
| View Angels | 85/85/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime |
| Touch Panel |
| Touch Options | Resistive, IR, PCAP, SAW |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
| Operation |
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
| Power |
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 30W |
| Order Information |
| 10.4”1000nits Panel Mount Panel PC with Resistive Touch, J1900 | ITD10PPCT1HBJ1 |
| 10.4”1000nits Panel Mount Panel PC with PCAP Touch, J1900 | ITD10PPCT5HBJ1 |
| 10.4”1000nits Panel Mount Panel PC with IR Touch, J1900 | ITD10PPCT2HBJ1 |
| 10.4”1000nits Panel Mount Panel PC with Tempered Glass, J1900 | ITD10PPCG1HBJ1 |
| 10.4”1000nits Panel Mount Panel PC with Resistive Touch, i5 | ITD10PPCT1HBI5 |
| 10.4”1000nits Panel Mount Panel PC with PCAP Touch, i5 | ITD10PPCT5HBI5 |
| 10.4”1000nits Panel Mount Panel PC with IR Touch, i5 | ITD10PPCT2HBI5 |
| 10.4”1000nits Panel Mount Panel PC with Tempered Glass, i5 | ITD10PPCG1HBI5 |
