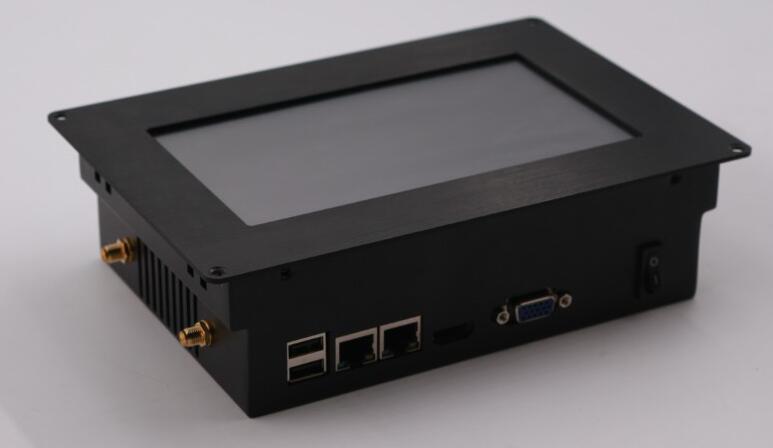

10.1inch Vehicle use PCAP Freescale Linux Touch Panel PC CAN BUS 4G WIFI GPS DC110V optional
ITD 10.1” the in-vehicle touch panel computer equipped with a Freescale ARM Cortex-A9 i.MX 6DualLite processor, Android 5.1 OS, 2 GB memory, a 10.1” industrial grade TFT panel and resistive touch screen. Built-in LTE capabilities transform the terminal into a wireless network hub that supports Wi-Fi, Bluetooth, and GPS communication to enable location tracking and route optimization. The in-vehicle touch computer is highly resistant to impact and vibration without moving parts, come with screw-in M12 plugs (depending on the application) and are suitable for the expanded temperature range especially designed for driverless transport systems (DTS), agricultural and construction machines, and special-purpose vehicles.
| System | CPU | Freescale Cortex I.MX6 Quad Core A9 |
| Memory | DRAM 2GB |
| Storage | Sandisk EMMC 4G |
| OS | Android, Linux |
| Ethernet | 2 x 10/100/1000Mbps |
| Input / Output | Bus Expansion | 1 x Mini PCIe (Supports 3G/4G) |
| USB Ports | 2 x USB |
| HDMI Port | 1 X HDMI |
| VGA Port | 1 x VGA |
| M12 Power | 1 x M12 |
| TF Slot | 1 x TF Slot |
| Panel | Cell Type/Glass Surface | TFT LCD |
| Aspect Ratio/Size | 10.1” |
| Active Area/Pixel Pitch | 221.0(W) x 140.50(H)/0.1695mm |
| Native Resolution/Colors | 1280 x 800 /16.7M |
| Brightness/Contrast | 300nits/500:1 |
| Viewing Angle(Typical) | 80/80/80/80 |
| Light Source | LED Backlight with 50000Hours’Lifetime |
| Power | Input Voltage | External power supply with universal / Auto-Sensing, DC 8-36V |
| Operation/Power Saving | 15W |
| Environment Considerations | Operating Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Relative Humidity | 10%~90% (non condensing) |
| Anti-Vibration | 5Hz-500Hz / 1Grms/3 Axis |
| Anti-Shock | 15G, 15ms duration |
| Touch Panel | Resistive Touch Panel |
| Order Information | 10.1” Vehicle panel PC with Resistive touch/ITD101PPCT1VE1 |
| 10.1” Vehicle panel PC with PCAP touch/ ITD101PPCT5VE1 |
| 10.1” Vehicle panel PC with Tempered glass/ ITD101PPCG1VE1 |
FEATURES
▪ Freescale ARM Cortex-A9 i.MX 6DualLite processor with Android 5.1 OS
▪ LTE/HSPA+, Wi-Fi, Bluetooth, and GPS connectivity
▪ Energy-efficient and fan-less HMI Systems
▪ Robust design with aluminum bezel NEMA 4/ IP65 front panel
▪ CAN bus interface with raw CAN, J1939, and OBD-II/ISO 15765 support
▪ Flexible, easy configuration and integration
▪ CE, FCC, RoHS Compliance
OPTIONALS
•WIFI, Bluetooth, GPS
•SIM Card, Can Bus x 2, SATA
•RS232, RS485, RS422 Ports
•Touch optional: Resistive, PCAP
•High brightness, sunlight readable
•DC60-150V, AC90-264V
